Strong features

  • High closing force
    Compared to other brands, the Pladdet rotating demolition and sorting grapple has the highest closing force.
  • Sealing frame
    The cylinders are protected as much as possible by sealing from the parent frame.
  • High quality
    The shells are made of Hardox® and the mother frame of high-strength steel. This makes the strength and rigidity of the mother frame unrivalled.
  • Interchangeable shells
    The scales are interchangeable in width.
PRODUCT DESCRIPTION

Rotating demolition and sorting grapple

Pladdet rotating demolition and sorting grapple
This rock-solid combination of a demolition and sorting grapple provides the best product for the most customer-friendly price and with an exceptional 3-year warranty. Compared to other brands, the Pladdet demolition sorting grapple has the highest closing force. This grapple is especially designed for the demolition, environmental and recycling industry and for general work. This new grapple series was introduced to the market at the end of 2011. In 2018, the feedback received over a period of 6 years was incorporated, resulting in the -II models.

Construction of rotating demolition and sorting grapple
The shells are made of Hardox® and the mother frame of high-strength steel. This makes the strength and stiffness of the mother frame unparalleled. The sorting grapple has a base unit with a moving shell mounted on both sides. The base unit contains one or two cylinders and one or two stabiliser bars, depending on the size.

All drive motors are of the premium Parker brand. Starting with the PRG3 type, we mount two drive motors. This distributes the force and increases the torque.

Options rotary rotating demolition and sorting grapple
The bowls of the sorting grapple are exchangeable in width.

View our product range here used rotating demolition and sorting grapple and new rotating demolition and sorting grapple

Have a question? We're glad to make a recommendation!

Please contact us
extra options

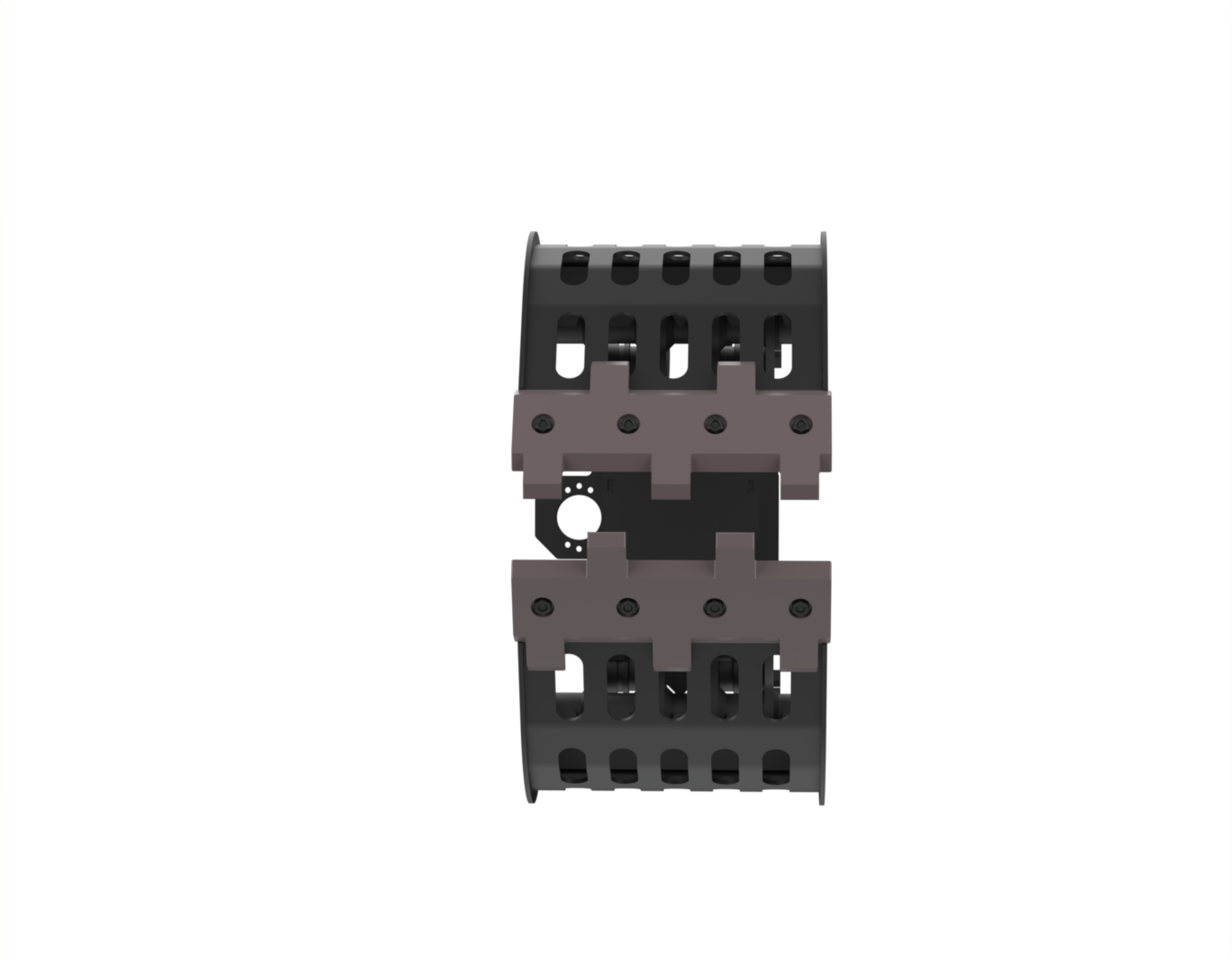

Changeable Tines

Changeable tines ensure a good grip of compost and tree trunks, for example. The bevelled teeth ensure a better grip of the material. This keeps the material from slipping out. The tines slide over and under the blade. This ensures that the grapple closes completely when there is no material sticking out from underneath. The changeable tines are made of Hardox®, making them very wear-resistant. The tine blades are available for grapples starting from the PRG2.

extra options

Rubber Attachements

The rubber attachment allows you to clamp smooth materials, such as stones, well. This prevents these materials from shifting.

extra options

Serrated side plates

These side plates are mounted on the side of the shells. This enables you to clamp smaller logs tightly, for example. As a result, you can shorten the logs perfectly.

extra options

Closed side plates

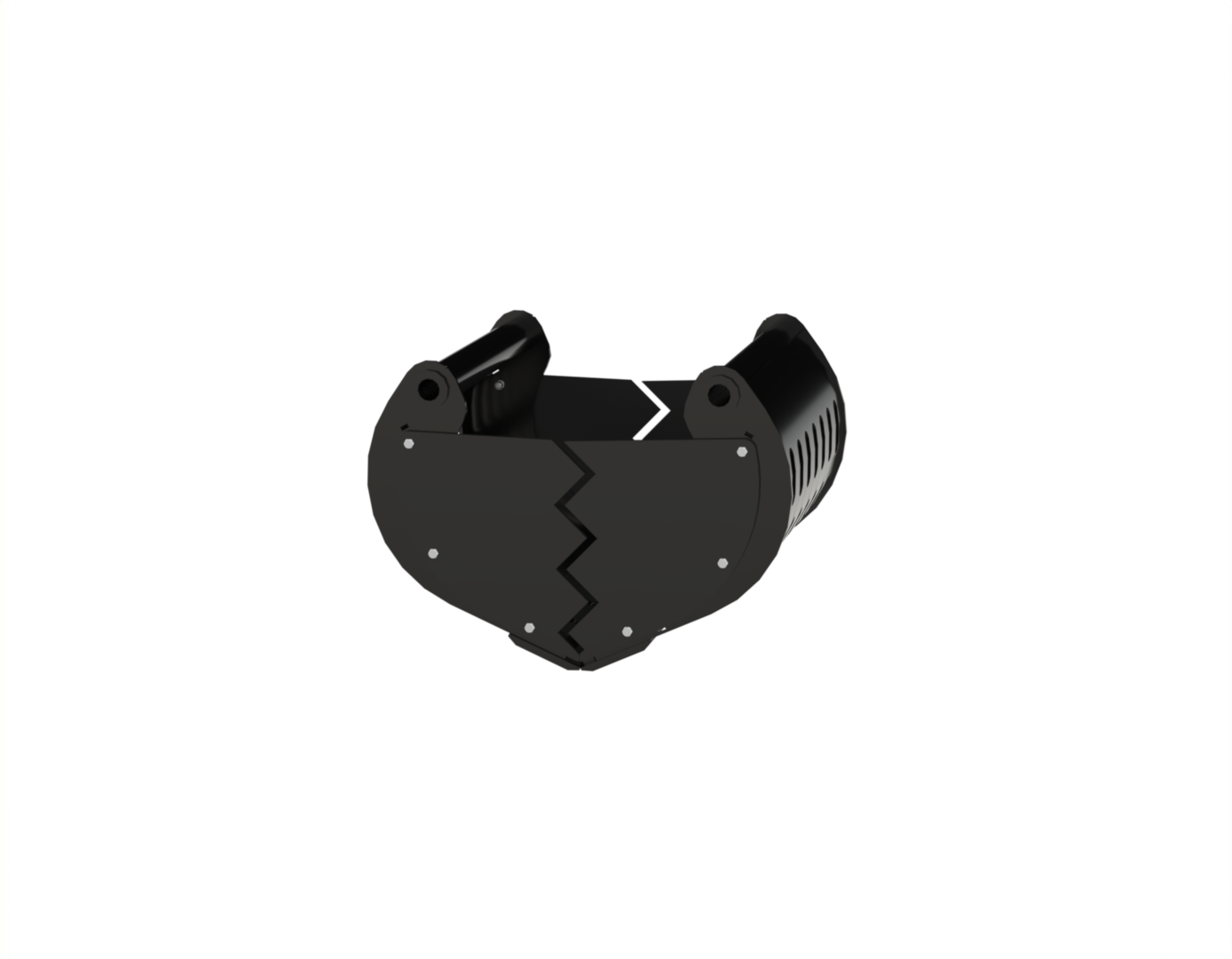

These side plates are mounted on the side of the shells and allow the grapple to be used as a grab bucket.

extra options

Load safety valve

The load safety valve ensures that the demolition-sorting grapple does not lose pressure when picking up hard materials.

Various models

The rotating demolition and sorting grapple is available in different sizes.
