Sterke Eigenschappen

  • Developed for and by railway companies
    Zelfs met een gevulde watertank is het operationeel gewicht van de grondzuiger slechts 1.550 kg, wat deze geschikt maakt voor machines vanaf 14 ton.
  • Low design
    Een standaard zuigslang van rubber van 1,5 meter wordt meegeleverd, voorzien van gekartelde rand aan onderzijde. Andere lengte of materiaal is zeker mogelijk.
  • Flexibility
    De grondzuiger is eenvoudig aan te sluiten op de machine, geen elektrische aansluiting vereist.
PRODUCT DESCRIPTION

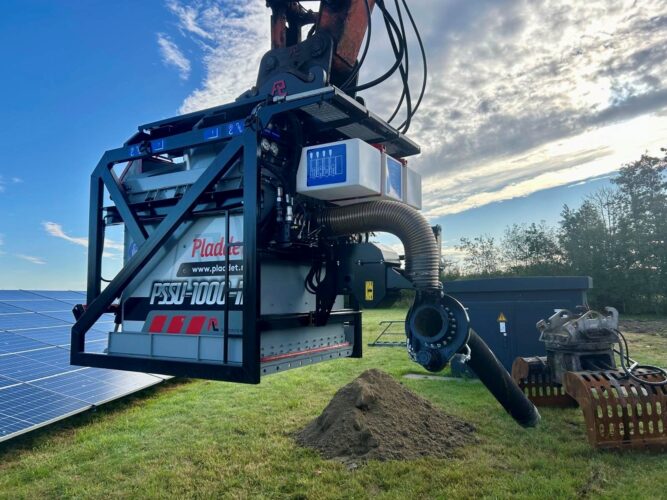

soil suction unit

Soil suction unit, How it works
The soil suction unit uses airflow to suck up the material. A movable suction hose – both hammering and rotating – carries the material with the airflow to the reservoir. Once in the reservoir, the material sinks to the bottom due to gravity. The airflow continues through the sieve, which is at the top of the reservoir. The airflow continues through the impeller and the impeller housing, where it continues its way out. The exhaust has a coarse filter, with a fine filter installed around this

Sprinkler installation soil suction unit
A sprinkler installation is provided for dry materials. Water is added to the nozzle in fine droplets to ensure that it is well mixed in the airflow. By spraying the soil with water, considerable dust reduction is achieved. The volume of airflow is pulled through a centrifugal fan. A hydraulic motor drives the centrifugal fan.

Control soil suction unit

  • 1x Standard hammer circuit (single acting) up to 115 litres maximum at 300 bar. For operating the ventilator + up and down movement of the squeegee + optional rotation of the squeegee. This is possible by changing the ball valves on the suction box itself.
  • 1x Rotation circuit (double acting) à 20-30 litres at maximum 180 bar.
  • Standard equipped with high pressure water system (250 bar).
  • The top of the container is fitted with a flat plate with HM1000 hole pattern. Because of its construction, the soil dredger can easily be used in places with little space, for example under a tree that needs to be moved, or in a tunnel.
  • Optionally, a rotating suction nozzle is available.

View our product range here used soil suction unit and new soil suction unit

Have a question? We're glad to make a recommendation!

Please contact us

Model

The soil suction unit is available in one size.
